Food-Grade Precision Machining Solutions: Custom Convey Link for Food Processing Lines

In the food processing industry, equipment reliability and hygiene standards are paramount. Every single component on the production line directly impacts food safety and operational efficiency. As a leading non-standard custom precision machining factory, we specialize in manufacturing high-performance, critical engineering components tailored to your exact blueprints.

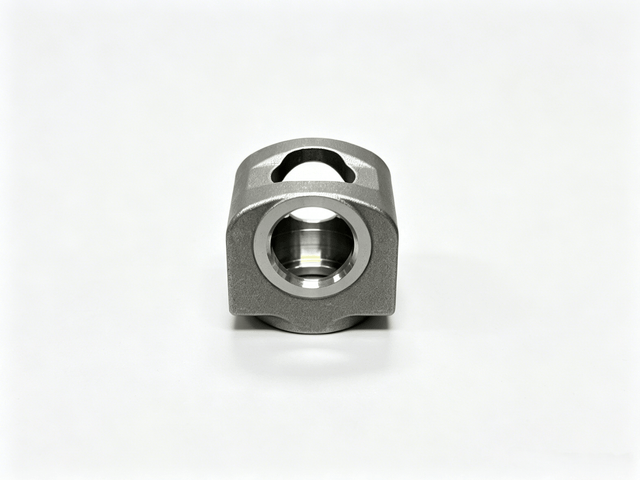

Our custom Convex Links (Convex Joints) are engineered specifically for high-load, continuous-running food production and packaging automation lines.

🛠️ Product Overview & Strategic Value

This product is a heavy-duty, high-precision connection and transmission linkage designed for automated food machinery. Serving as a critical mechanical joint, it synchronizes high-frequency movements in sorting, filling, or packaging mechanisms.

Why Material & Engineering Matter

Food manufacturing environments are notoriously harsh—characterized by high humidity, exposure to organic acids, and frequent high-pressure washdowns with chemical sanitizers (CIP processes).

To withstand these conditions, we utilize premium Martensitic Stainless Steel, which undergoes advanced vacuum hardening and tempering followed by meticulous automated surface finishing. The result is a component that offers the ultimate balance of structural strength, wear resistance, and sanitary compliance.

⚙️ Manufacturing Process & Quality Control

We bridge the gap between rough raw materials and high-precision finished components through a tightly controlled, end-to-end manufacturing workflow.

🎯 Manufacturing Challenges & Our Solutions

Manufacturing a component that is both mechanically robust and ultra-hygienic presents unique machining obstacles. Here is how our engineering team overcomes them:

1. Machining Hardened Stainless Steel

• The Challenge: After vacuum heat treatment, martensitic stainless steel becomes highly wear-resistant but notoriously difficult to machine. It causes rapid tool wear, excessive cutting heat, and severe work-hardening, which can jeopardize surface finish and dimensional stability.

• Our Solution: We utilize advanced premium coated carbide tooling specifically rated for hardened steels. By optimizing cutting speeds, feed rates, and employing high-pressure, flood-cooling systems, we suppress heat generation and guarantee flawless, repeatable dimensions without micro-cracks.

2. Achieving Strict Sanitary Surface Requirements

• The Challenge: Food-grade components cannot have any microscopic burrs, sharp corners, or deep tool marks. Micro-imperfections act as breeding grounds for bacteria and trap food residue, failing strict food safety inspections.

• Our Solution: We enforce a multi-step finishing protocol. Following high-precision CNC finishing, components undergo extended barrel tumbling/vibratory polishing. This removes micro-burrs and achieves a smooth, ultra-clean surface profile. Finally, a validated passivation process eliminates free iron from the surface, ensuring the part is highly resistant to bacterial adhesion and easy to clean.

3. Maintaining Perfect Alignment Across Multiple Bores

• The Challenge: The part relies on multiple precise internal bores acting as high-frequency pivot points. Any slight misalignment or concentricity error between these bores will cause uneven wear, localized friction, and eventual premature failure of the assembly.

• Our Solution: We utilize custom-engineered hydraulic clamping fixtures in a single-setup machining operation on our multi-axis CNC centers. Machining all critical bores in one single holding cycle completely eliminates stacking errors caused by re-clamping, ensuring absolute parallelism and concentricity.

❓ Frequently Asked Questions (FAQ)

Q1: Can you manufacture this part using our specific grade of stainless steel?

A: Absolutely. While we routinely process high-grade martensitic stainless steels engineered for food machinery, we can adapt to any material specified in your drawings, including AISI 304, 316L, or specialized precipitation-hardening steels.

Q2: How do you guarantee the part is safe for direct or indirect food contact?

A: Our entire post-processing workflow is designed around food safety. The combination of automated deburring eliminates the risk of physical metal contamination (loose burrs). Furthermore, our chemical passivation removes surface impurities, ensuring the steel will not corrode or leach under strict food-industry CIP (Clean-in-Place) regimes.

Q3: We have a custom modification of this link. Do you accept low-to-medium volume production?

A: Yes. As a non-standard custom precision machining factory, we specialize in high-mix, low-to-medium volume manufacturing. Whether you need a prototype run for equipment R&D or batch production for standard machine rollouts, we adapt our fixtures and tooling to match your volume.

Q4: What quality documentation do you provide with shipment?

A: Every shipment comes with a comprehensive Quality Assurance package. This includes Material Test Certificates (MTC), Heat Treatment/Hardness Reports, Passivation Compliance Certificates, and full Dimensional Inspection Reports captured via our CMM (Coordinate Measuring Machines).

📈 Partner with a Food-Grade Machining Expert

Don't let component failure halt a high-speed production line. Leverage our precision forging, vacuum heat treatment, and multi-axis CNC machining capabilities to elevate your machinery's reliability.

[Contact Our Engineering Team Today] Upload your 2D/3D drawings for a confidential technical review and a competitive B2B quote within 24 hours.
