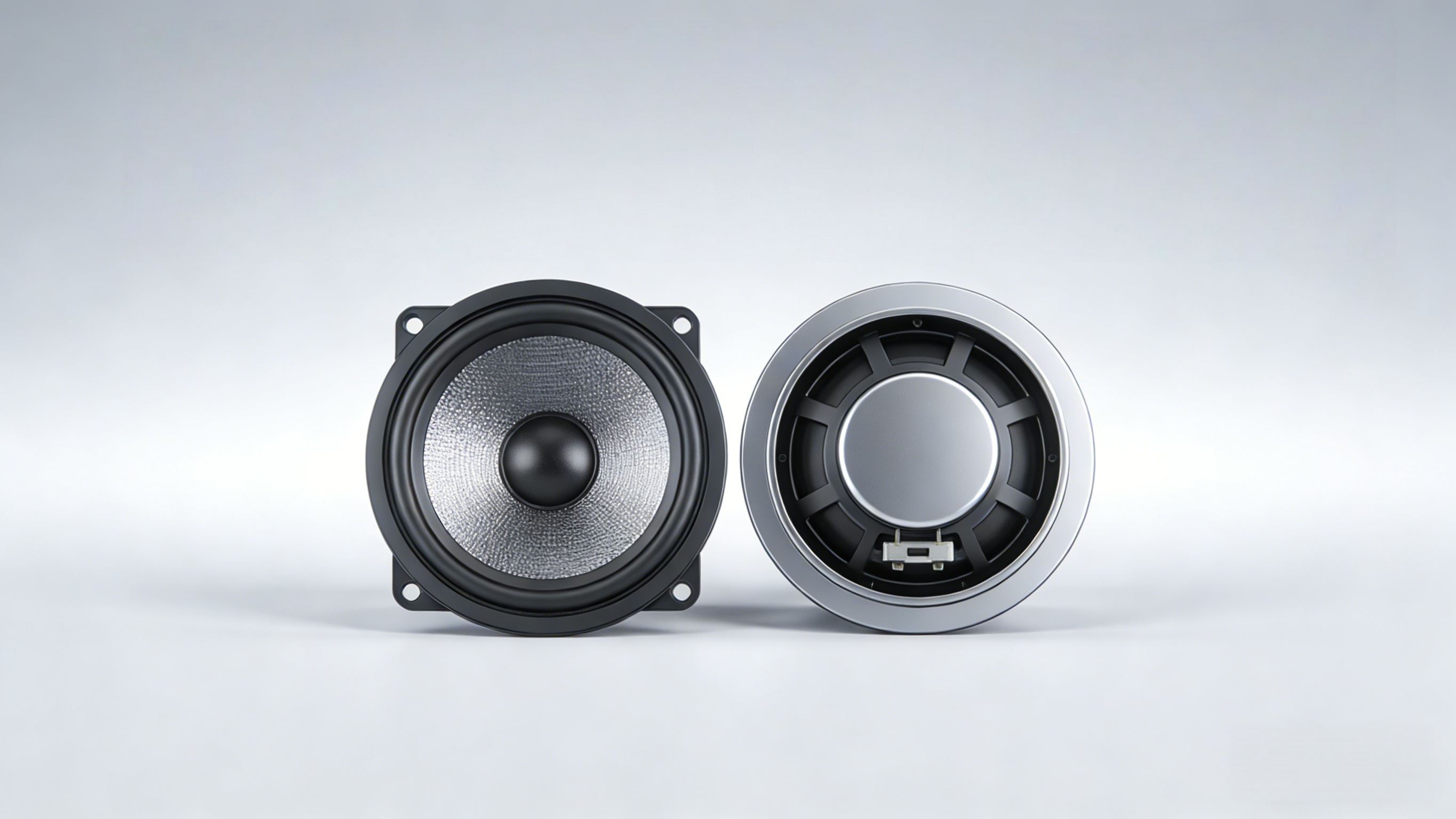

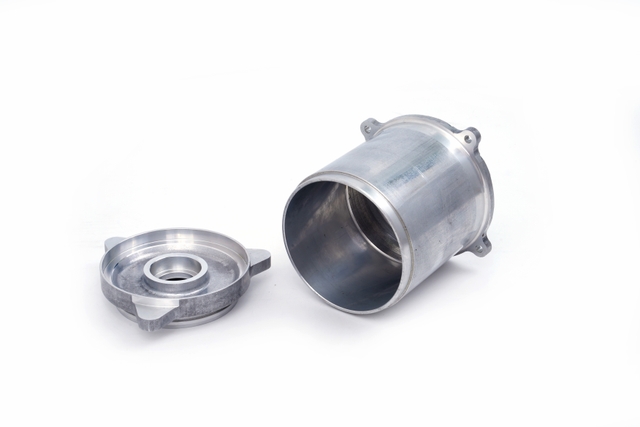

Processing Solution for Matching Metal Casing & End Cover of Vehicle-Mounted Speaker

Core Product Positioning & Features

Complete Processing Flow

1. Raw Material Selection & Preprocessing: Select high-strength metal raw materials suitable for vehicle-mounted scenarios, and conduct flattening, derusting, quenching and tempering and other preprocessing to improve the mechanical properties of raw materials and avoid deformation and cracking after processing.
2. Precision Blanking: Adopt CNC laser cutting/CNC punch for precise blanking, control the dimensional accuracy of blanking, reduce subsequent machining allowance and improve processing efficiency.
3. CNC Forming Processing: Aiming at the cavity structure of the casing and the cover structure of the end cover, adopt CNC milling, CNC turning, bending/drawing and other forming processes respectively. Realize precise forming of complex structures through multi-axis CNC equipment to ensure the structural matching of the two parts.
4. Processing of Holes & Connecting Positions: Conduct precision drilling, boring and tapping on the assembly holes, positioning holes and connecting positions of the products to ensure the consistency of hole spacing and depth, meeting the bolt/snap connection requirements for the overall assembly of subsequent speakers.
5. Surface Treatment: Conduct oxidation, galvanizing, plastic spraying and other surface treatments on the casing and end cover according to customer requirements to improve the anti-corrosion, vibration resistance and temperature resistance of the products, adapting to the complex vehicle-mounted environment.
6. Matching Precision Inspection & Trial Assembly: After the completion of single part processing, conduct complete set trial assembly inspection to verify the fit clearance and adhesion of the casing and end cover, and eliminate the problem of inconsistent matching even if single parts are qualified.
7. Finished Product Re-inspection & Packaging: Conduct a comprehensive re-inspection of the size, appearance and surface performance of the products qualified for trial assembly, and adopt customized packaging with scratch and collision resistance to ensure no damage to the products during transportation.

Core Processing Difficulties

1. Difficulty in controlling matching fit precision: The casing and end cover are matching assembly parts that need to achieve seamless fitting. The dimensional tolerance and geometric tolerance of the two parts must be highly matched. If there is a slight deviation in single part processing, problems such as excessive assembly clearance and poor adhesion are prone to occur, affecting the sealing performance and structural stability of the speaker.
2. Difficulty in forming and deformation control of thin-walled/cavity structures: The speaker casing is mostly a cavity structure, and the end cover is mostly a thin-walled cover structure. Metal materials are prone to warping and deformation due to stress release during forming and cutting processing, leading to product dimension out of tolerance and affecting subsequent assembly.
3. Difficulty in processing small-size precision features: The overall size of the product is small, and it includes multiple small-size precision features such as assembly holes and positioning grooves. During processing, problems such as tool chatter, hole deviation and thread slipping are prone to occur, which put forward extremely high requirements for the precision of processing equipment and tools.
4. Difficulty in adapting performance to vehicle-mounted environment: It is necessary to balance the mechanical rigidity and lightweight of the product. At the same time, the surface treatment must meet the requirements of vibration resistance, temperature resistance and anti-corrosion of the vehicle-mounted environment, and the structural strength and processing process adaptability need to be balanced during processing.

Solutions to Overcome Difficulties

1. Integrated Processing to Ensure Matching Precision

2. Process Optimization to Strictly Control Processing Deformation

• For thin-walled/cavity structures, adopt the CNC processing process of layered cutting and micro feed to reduce the extrusion of cutting force on the workpiece and reduce stress deformation.
• Add multiple aging treatments during processing to release the internal stress generated in raw materials and processing, and avoid subsequent product deformation from the source.
• Adopt special fixtures for precise clamping and positioning of workpieces, avoid workpiece deformation caused by excessive clamping force and improve the consistency of clamping.

3. High-End Equipment + Special Tools for Precision Feature Processing

• Equipped with high-precision CNC multi-axis machining centers, CNC engraving machines and other equipment with micron-level positioning accuracy to meet the processing requirements of small-size precision features.
• Select special precision cutting tools made of cemented carbide, customize the tool angle and specification according to the product material and processing features to reduce tool chatter and improve the processing accuracy of holes and grooves.
• Adopt CNC tapping machine for thread processing, with tap protection device to avoid thread slipping and damage, ensuring the processing quality of connecting positions.

4. Whole-Process Quality Control + Customized Surface Treatment for Vehicle-Mounted Environment Adaptation

• Conduct material performance testing in the raw material link to ensure that the rigidity and temperature resistance of raw materials meet vehicle-mounted requirements; conduct dimensional and geometric tolerance testing for each process during processing to prevent unqualified products from flowing into the next process.
• Customize surface treatment solutions according to the use requirements of the vehicle-mounted environment, such as adopting hard anodizing to improve the wear and corrosion resistance of products, and electrophoretic painting to improve surface adhesion and vibration resistance. At the same time, conduct performance testing on the products after surface treatment to ensure compliance with vehicle-mounted use standards.

5. Professional Trial Assembly & After-Sales Support

Our Processing Advantages

1. Rich experience in non-standard customization: We have been deeply engaged in the field of precision metal non-standard customized processing, familiar with the processing requirements and industry standards of vehicle-mounted electronic accessories, and can quickly formulate exclusive processing solutions according to customers' drawing requirements.
2. Strong equipment and technical strength: Equipped with a complete set of high-precision CNC processing equipment and professional testing equipment, with senior process engineers and CNC operators, able to solve various processing problems of complex precision structural parts.
3. Outstanding supporting processing capacity: Capable of integrated processing of complete sets of accessories, ensuring the matching precision of accessories, reducing customers' multi-supplier docking costs and improving supply efficiency.
4. Strict whole-process quality control: Establish a whole-process quality inspection system from raw materials to finished products, with inspection standards and records for each process to ensure the stability and consistency of product quality.
5. Vehicle-mounted scenario adaptability: Familiar with the use environment and performance requirements of vehicle-mounted products, fully consider factors such as vibration resistance, temperature resistance and anti-corrosion during processing, and the products can be directly adapted to the production and assembly of vehicle-mounted speakers.
