Complete Guide to Surface Finishing for Custom Aluminum OEM Components

Executive Summary & Technical Matrix: Surface Finishing Selection Rules for Aluminum OEM

Choosing the wrong surface treatment for custom 6061-T6 or 7075-T651 OEM components ruins part tolerances, causes premature fatigue failure under cyclic stress, or destroys sealing surfaces. Over 15 years on the shop floor at Liqin Industrial & Trading Co., Ltd., our Zeiss CMM log reports (Sample size > 1,800 runs) show that 38% of post-machining fit failures stem directly from improper dimensional allowances for anodic coating growth or uncontrolled etching during pre-treatment.

Pre-Treatment Degreasing, Etching & Micro-Roughness Control

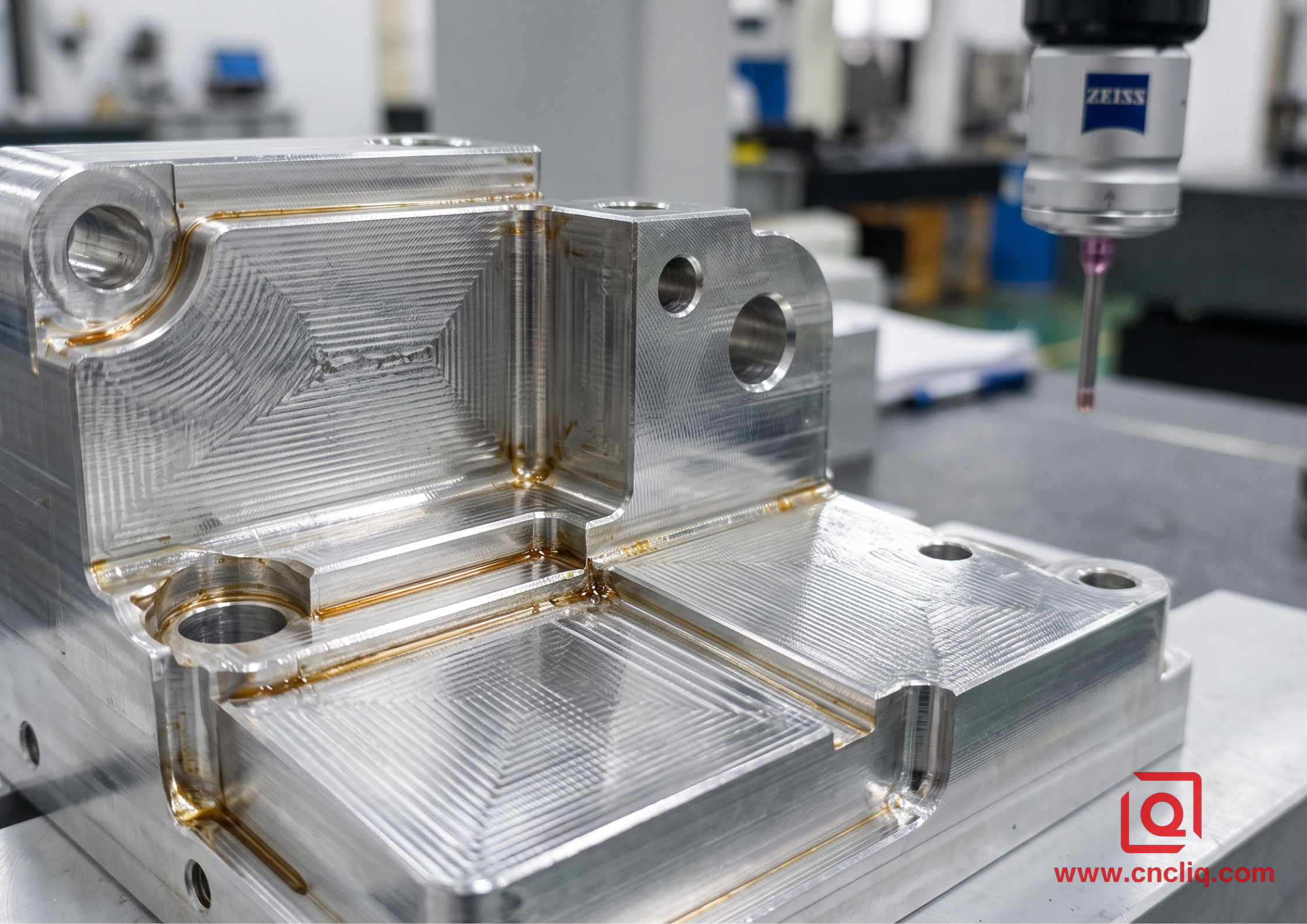

Don't expect anodic film to hide machining marks or residual cutting fluids. Leaving water-soluble coolant (e.g., CIMCOOL at 8% concentration) on AL 5052-H32 brackets for over 6 hours at 28°C ambient room temperature causes glycol compounds to chemically react with the aluminum matrix, forming localized aluminum hydroxide stains—resulting in pinhole pits and spotty dye reception during Type II black anodizing.

[Raw Machined Part (Ra 1.6 μm)] ➔ [Alkaline Degrease (60°C, 5 min)] ➔ [Rinse] ➔ [Acid Etch/Desmut (25% HNO3)] ➔ [Type II/III Bath]

Stop aggressive sodium hydroxide (NaOH) caustic etching on thin-walled (< 0.8 mm) 7075-T6 parts. A 2-minute soak in 5% NaOH at 55°C strips material at a rate of 1.2 μm/min per side, destroying H7/g6 pin clearance fits on CMM-verified locator bores. Instead, use an ammonium bifluoride-based mild acid etch at 22°C to strip native Al₂O₃ oxides without blowing out bore geometries.

1. Check bath parameters: Maintain total alkalinity at 45–60 g/L for alkaline degreasing.

2. Control desmutting: Dip 2024-T3 alloys in 20–30% nitric acid (HNO₃) with 5 g/L iron salt additives for 45 seconds at room temperature to eliminate copper smut (CuAl₂ precipitates) floating on the surface.

3. Bead Blasting (Grit #150 Glass Beads): Keep blast pressure at 0.35–0.40 MPa with a nozzle angle of 45° to achieve a uniform matte finish (Ra 0.8–1.2 μm). Warning: Exceeding 0.55 MPa on 0.5 mm thin-wall AL 6061 enclosures induces compressive surface stresses that bow the part by up to 0.18 mm across a 150 mm span.

Type II vs. Type III Hardcoat Anodizing: Bath Chemistry & Tolerance Compensation

The ultimate pitfall in aluminum OEM production is forgetting the 50/50 rule of anodic growth: 50% of total oxide layer thickness penetrates into the raw aluminum substrate, while 50% grows outward beyond the original physical boundary.

Hardcoat Anodizing (MIL-A-8625 Type III) Execution

To get a true 50 μm hardcoat on an AL 6061-T6 hydraulic valve block:

• Voltage & Current Density: Ramp voltage up to 36–48 V, maintaining a constant current density of 2.4 to 3.6 A/dm² (24–36 ASF).

• Bath Temperature Control: Cool the 15–20% H₂SO₄ bath down to 0°C ± 1°C. If your chiller fails and bath temperature climbs above 5°C, dissolution rate overtakes film growth rate—yielding a soft, porous layer with hardness dropping from 450 HV30 down to under 280 HV30.

• Dimensional Pre-compensation: For a nominal 20.000 mm (+0.010 / -0.000 mm) shaft diameter, machine the outer diameter (OD) down to 19.975 mm before anodizing. The 50 μm coat adds 25 μm per side outward, bringing finished OD to precisely 20.000 mm.

       Original Surface Baseline
                  │
   Penetration    │    Outward Growth
 ◄───────────────┼───────────────►
     25 μm       │     25 μm
 (Substrate consumed)│ (Outer dimension added)
 └───────────────┴───────────────┘
     Total Film Thickness: 50 μm

Pitch Interference on Internal Threads

Never hard-anodize internal threads smaller than M4x0.7 without masking. A 40 μm Type III coating shrinks internal pitch diameter by 80 μm total across opposing walls, causing GO-thread plug gauges (ASME B1.2 Class 2B/3B) to bind instantly. For M2 to M5 blind holes, specify MIL-DTL-5541 Type II Class 3 clear chromate conversion coating instead.

Chemical Conversion Coatings & Electropolishing Protocol

When electrical conductivity (contact resistance < 5,000 micro-ohms per sq in per MIL-DTL-81706) or zero dimensional change is non-negotiable for RF shielding enclosures or ground straps, skip anodic oxidation entirely.

Chromate Conversion (Alodine / SurTec 650)

• Trivalent Chromium (Cr3+) Protocol: Dip parts in SurTec 650 bath at 38–42°C, pH 3.8–4.2 for 180 seconds.

• Rinsing & Drying: Rinse immediately with deionized (DI) water (conductivity < 10 μS/cm). Never dry chromated parts with compressed air above 65°C; elevated baking temperatures dehydrate the gel-like Cr-Zr matrix, forming micro-fractures that cut ASTM B117 salt spray protection from 168 hours down to under 24 hours.

Electropolishing (ASTM B912) for High-Vacuum Components

For AL 6061 vacuum chamber manifold bodies, electro-chemical polishing removes 3 to 5 μm of surface asperities in an aqueous solution of phosphoric and sulfuric acids (60% H₃PO₄ / 20% H₂SO₄) at 65°C, using 12 V DC power.

• Result: Decreases surface roughness from Ra 0.8 μm down to Ra 0.15 μm, eliminating gas adsorption sites for ultra-high vacuum (UHV) systems.

• Key Precaution: Pre-calculate bore tolerance. An internal diameter (ID) specified at 12.000 mm expands to 12.008 mm post-polishing; adjust your 5-axis CNC finishing pass parameters accordingly.

Shop-Floor QC Protocol: Inspection & Deliverables for RFQ Sign-off

Never ship or accept an aluminum OEM batch without verifying these three critical quality control metrics:

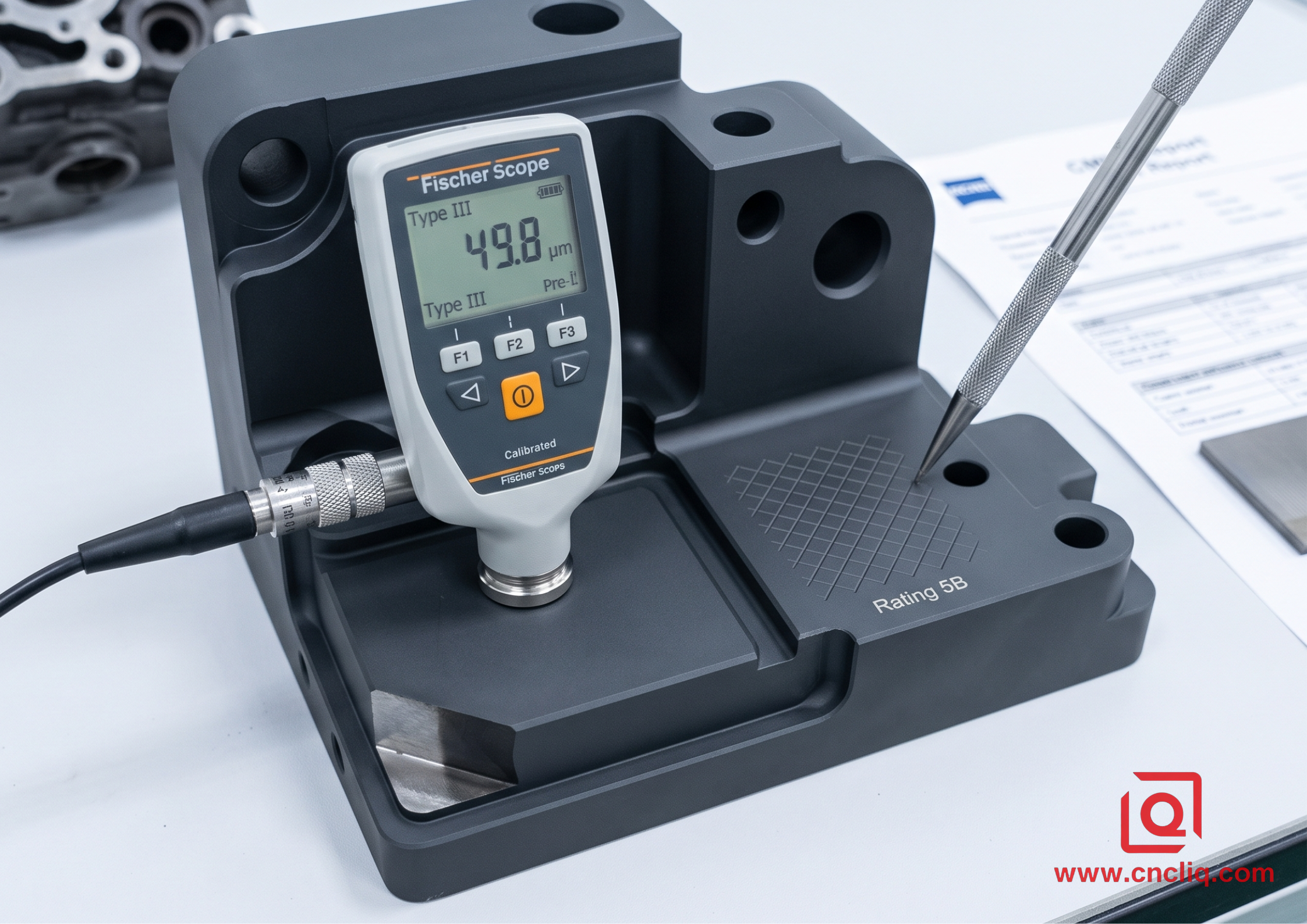

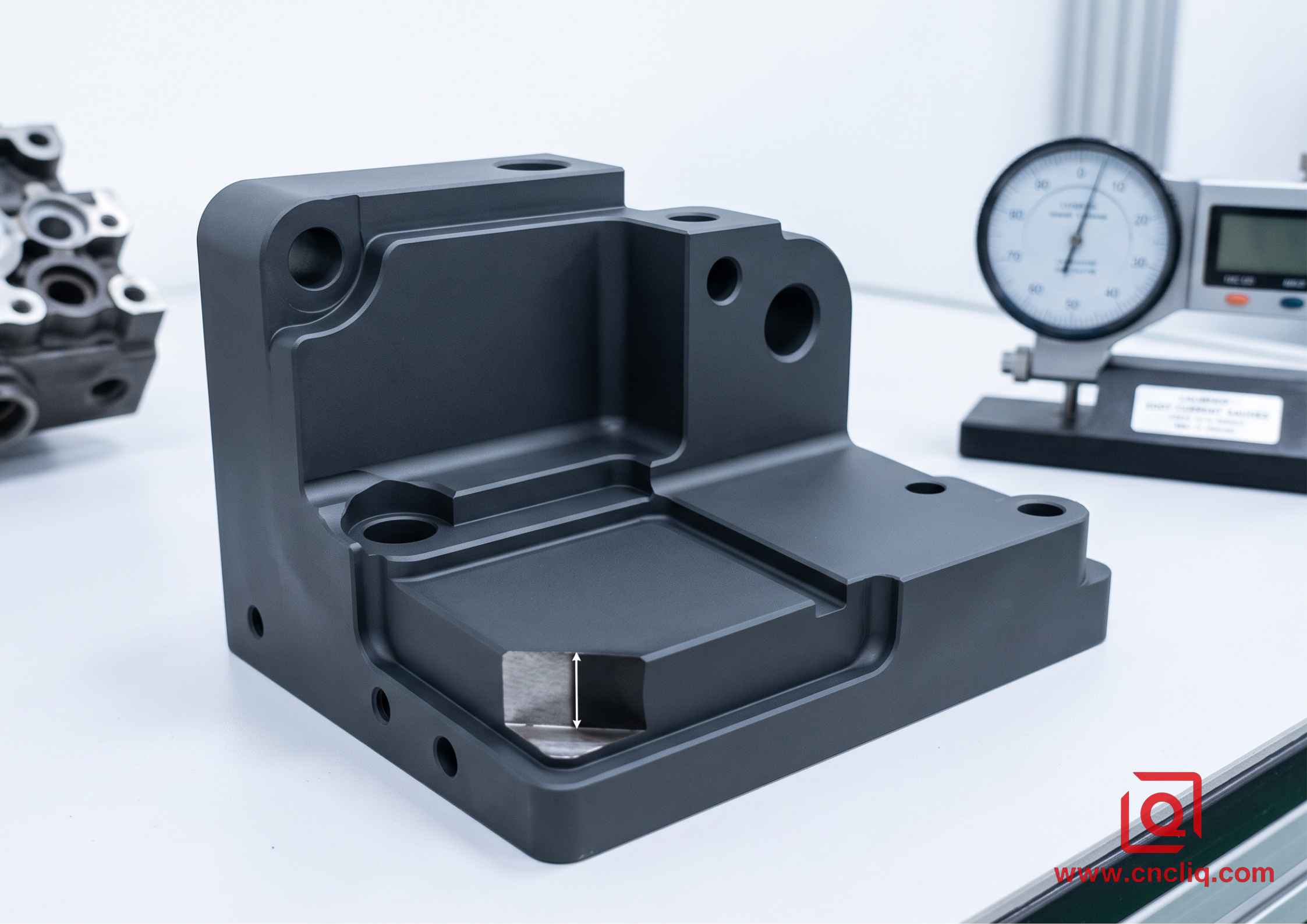

• Eddy Current Coating Thickness Test (ISO 2360 / ASTM B244): Measure coating thickness at 10 distinct points using a calibrated Fischer Scope. For Type III hardcoat, tolerance must stay within 50 μm ± 5 μm.

• Cross-Hatch Adhesion Test (ASTM D3359 Method B): Perform a 6-line lattice cut with a 1 mm blade spacing on anodized test coupons. Apply Permacel tape, pull hard at 90°; zero flaking or edge lattice detachment (Rating 5B) is allowed.
• Sealing Quality Verification (ISO 3210 / ASTM B136): For Type II colored parts, perform an acid stain test (300 g/L HNO₃ pre-dip for 2 min followed by Pyronine Y dye solution for 5 min). Staining indicates poor nickel acetate sealing (< 95°C water bath temperature), leading to rapid UV bleaching outdoors.

Require your manufacturing partner to submit a complete CMM dimensional inspection report, raw material cert (EN 10204 3.1), and ASTM B117 salt spray test log alongside every custom OEM production run.
